  • KR-08 Resin 3grit shape edge wheel
KR-08 Resin 3grit shape edge wheel

KR-08 Resin 3grit shape edge wheel

  • Type: KR-08
  • Material: diamond and resin
  • Package: 24pcs/carton
  • R/min: 2800
  • Product description: Kinger Diamond Tools Factory Limited offers glass grinding wheel, BD Polishing wheel, resin wheel, rubber wheel,RA wheel,Edging polishing wheel, alloy resin wheel,engraving polishing wheel,diamond whe
  • INQUIRY

suitable for shape bevelling edge machine


[size (diameter x thickness xhole) /mm] φ150x40x12 φ150x40x22


[working layer size (mm)]  16*10
[product granularity] coarse, medium, fine
[product material] diamond & Resin
The scope of application of glass furniture
[packing standard (pc / carton)] 24pcs/carton
[speed (r/min)] 2800r/min

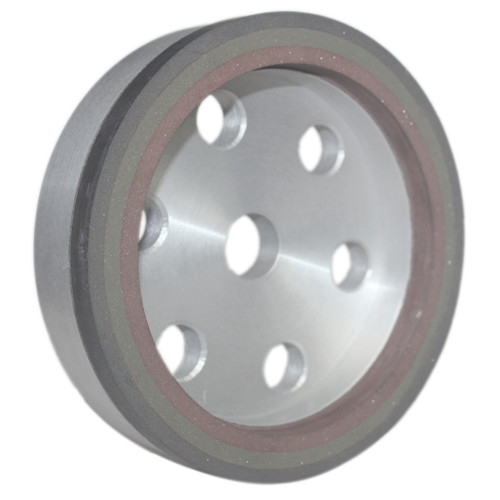

Diamond and resin bonded heat warm compaction, three colors representing different particle size, from the inside to the outside are respectively 320#, 180#, 80#, 2# are usually used for special-shaped beveling machine, this product grinding effect is very good, common specifications of 150MM diameter, aperture 12/22MM layer 16*10MM. respectively with aluminum and bakelite bottom ,there are 3 holes on the aluminum plate, 6 hole on bakelite plate to observe the effect of machining. Instead of special-shaped bevelling resin wheel.
